LENOVO B490 WHITE SCREEN PROBLEM

Post Reply
MANIKANDAN
Newbie
Newbie
Posts: 9
Joined: Fri Dec 11, 2015 4:38 am

LENOVO B490 WHITE SCREEN PROBLEM

Post by MANIKANDAN »

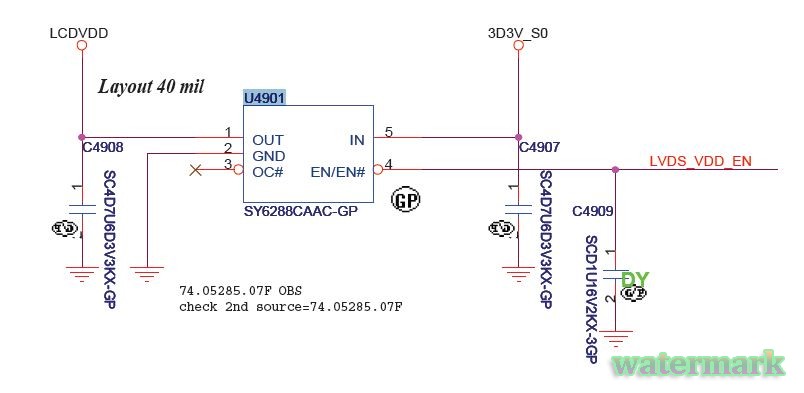

LENOVO B490 WHITE SCREEN PROBLEM.DISPLAY AND LCD CABLE CHANGED.FINALLY TRACE THE BOARD LCD VDD 3.3V MISSING.REMOVE U4901 AND DIRECT PIN 1 AND 5.NOW DISPLAY WORKING.
Attachments
Top
gssystem14
Member
Member
Posts: 41
Joined: Sun Dec 20, 2015 3:25 pm
Location: raipur
Contact:
Contact gssystem14

Re: LENOVO B490 WHITE SCREEN PROBLEM

Post by gssystem14 »

good job
Top
esmat-fadak
Guru
Guru
Posts: 182
Joined: Thu Feb 18, 2016 11:32 am
Location: Kabul, Afghanistan

Re: LENOVO B490 WHITE SCREEN PROBLEM

Post by esmat-fadak »

thanks for sharing
Top
harjindersingh
Newbie
Newbie
Posts: 3
Joined: Thu Mar 17, 2016 12:16 pm

Re: LENOVO B490 WHITE SCREEN PROBLEM

Post by harjindersingh »

great job
Top
chandra
Member
Member
Posts: 36
Joined: Mon Mar 07, 2016 8:57 am

Re: LENOVO B490 WHITE SCREEN PROBLEM

Post by chandra »

nice

[ Post made via Android ] Image
Top
gssystem14
Member
Member
Posts: 41
Joined: Sun Dec 20, 2015 3:25 pm
Location: raipur
Contact:
Contact gssystem14

Re: LENOVO B490 WHITE SCREEN PROBLEM

Post by gssystem14 »

good work sir ji
Top
